Measures

Overview

Measures provides data-driven recommendations for energy efficiency.
Start at /tiltak, select a building or a portfolio, and continue to detailed analyses.

---

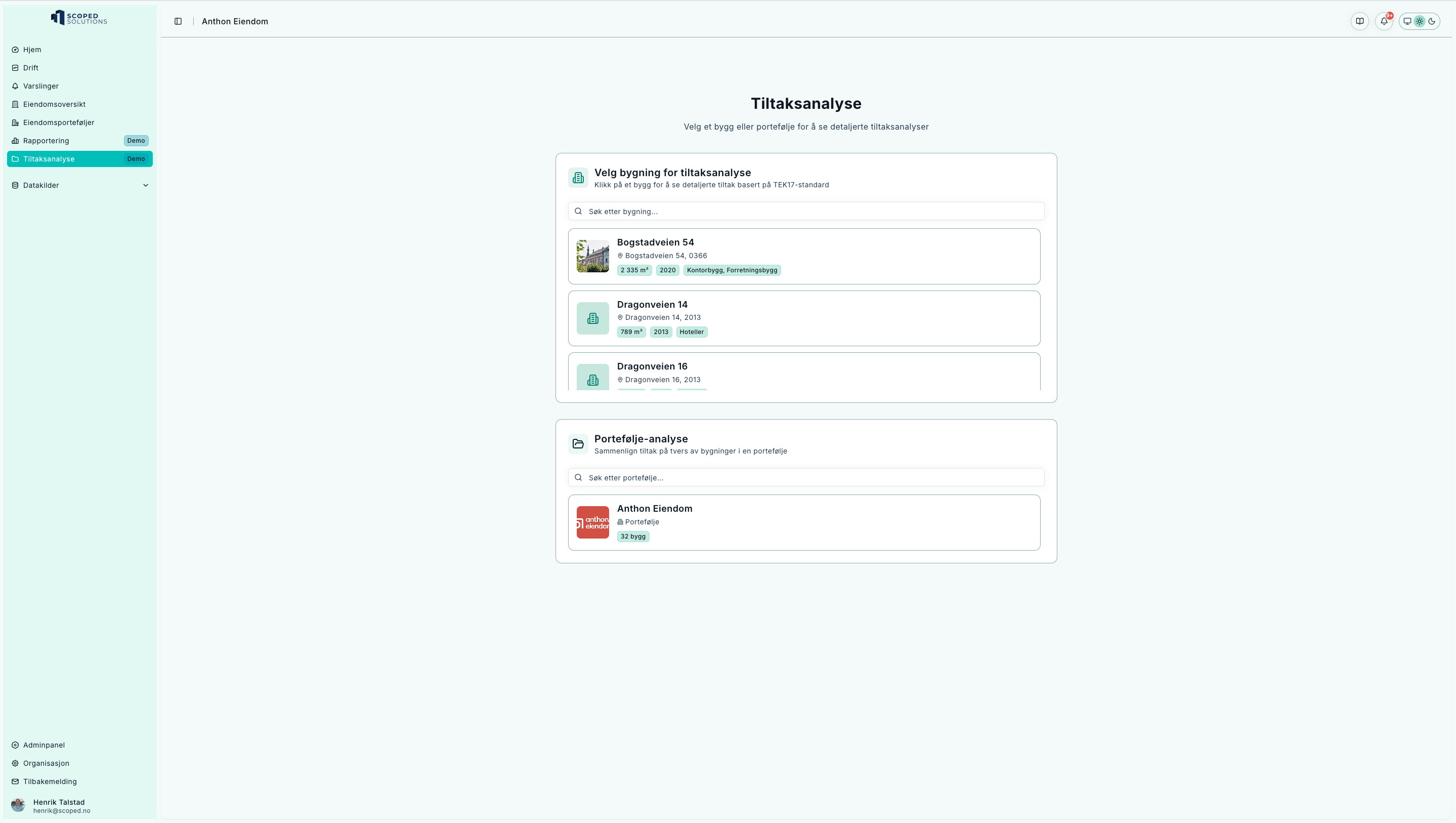

Start: Select building or portfolio

• On /tiltak you can choose:
  • Building → detailed analysis of a single building
  • Portfolio → comparison and prioritization across multiple buildings
• If no organization is selected, you will first be sent to the “select organization” page.

Tip: Begin with buildings that have an energy certificate or active metering points for best results.

---

Building analysis /tiltak/eiendom/[slug]

The building page fetches data and runs client-side analyses.
To proceed, the building must have at least one energy certificate or at least one metering point.

Content (may vary):

• Overview of recommended measures and potential
• KPIs (performance, cost, risk)
• Links to specific categories, e.g. Building Envelope

Workflow:

1. Open /tiltak/eiendom/[slug]
2. Review KPIs and recommended measures
3. Continue to categories such as Building Envelope for simulation

---

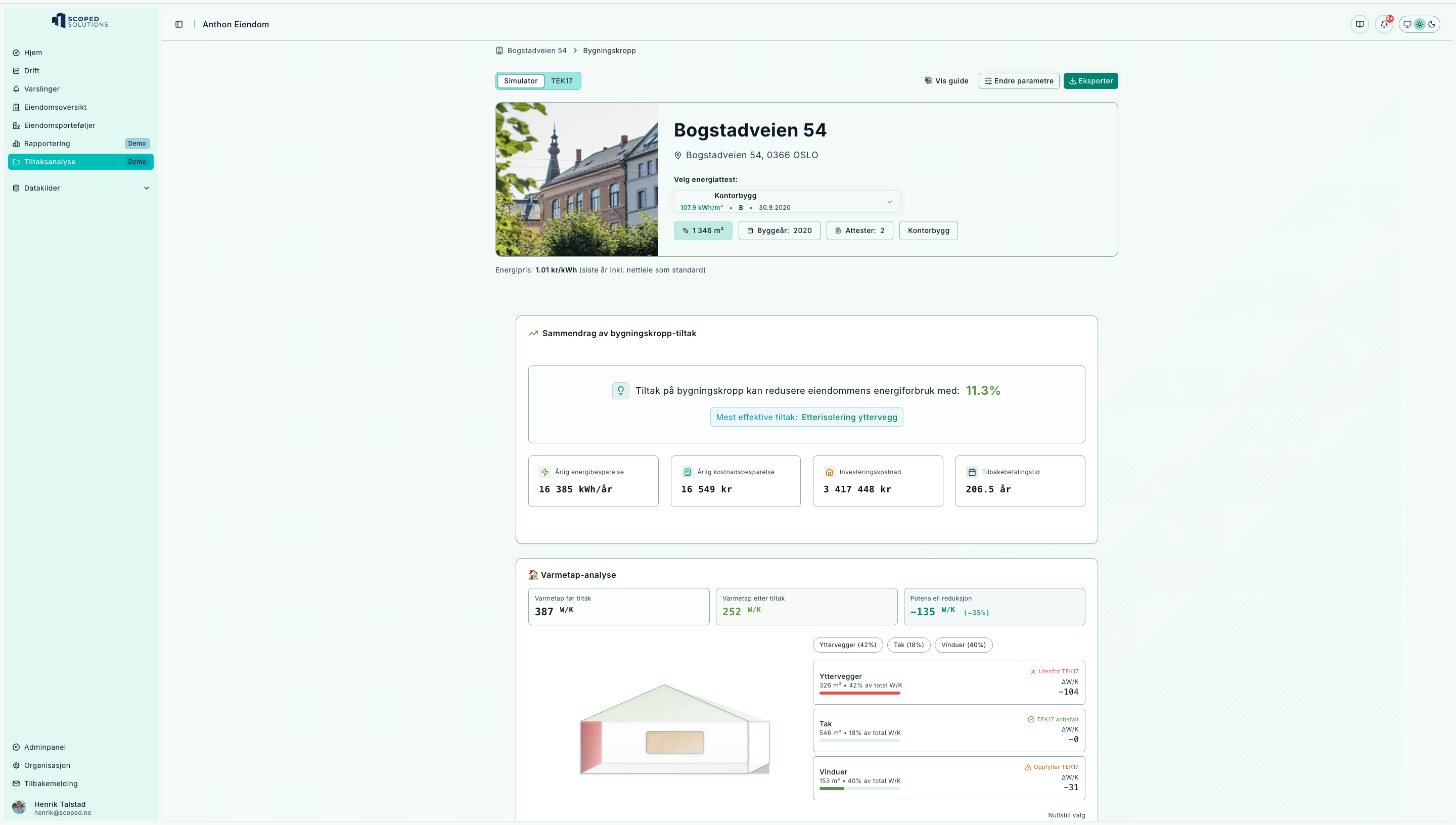

Building Envelope /tiltak/eiendom/[slug]/bygningskropp

This page has two tabs:

• Simulator – test effects of measures in the building envelope (insulation, windows, thermal bridges, etc.)
• TEK17 – analyze against TEK17 requirements and identify gaps

Requires at least one energy certificate.

Simulator

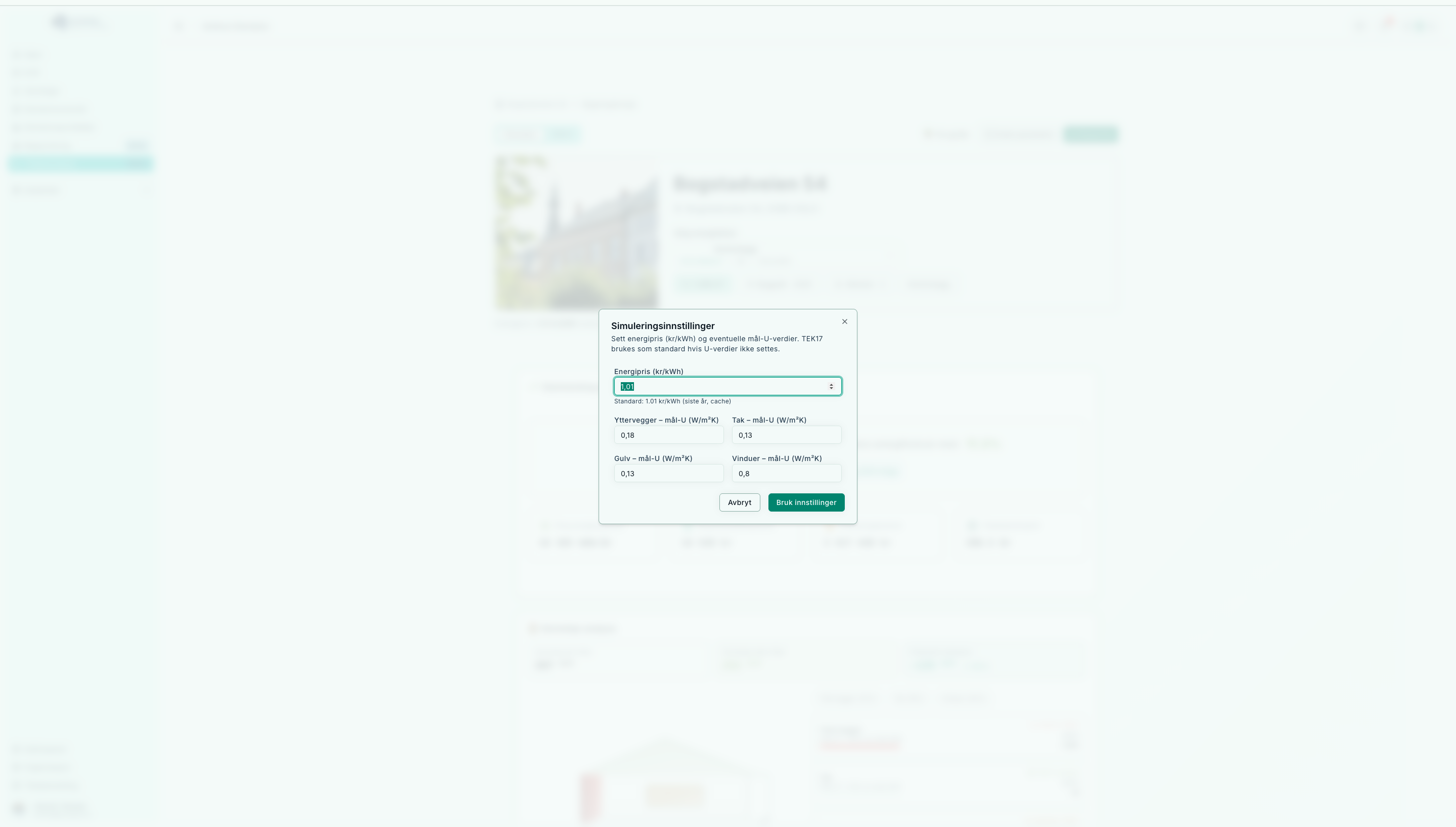

• Click “Change parameters” to adjust:
  • Energy price (kr/kWh): prefilled with last 12-month average incl. grid tariffs
  • Target U-values: prefilled with TEK17 recommendations or current level if better
• Click “Apply settings” to update the analysis.

Tip: Empty or 0 values cause validation errors.
Set values equal to TEK17 recommendations to return to standard levels.

Export (PDF)

• Click “Export” to generate a report.
• PDF will open in a new tab or download directly.

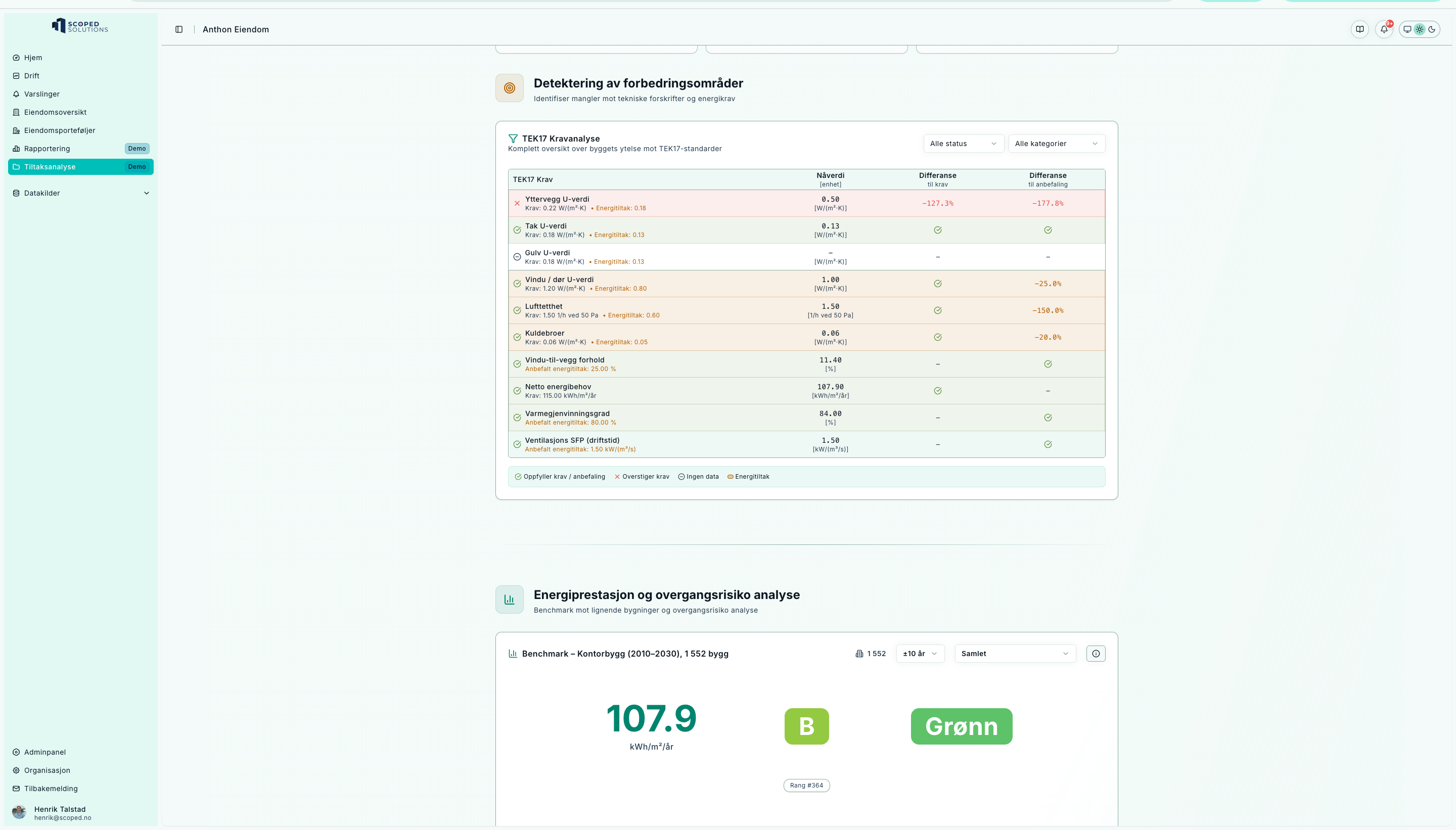

TEK17 analysis

• Shows status against TEK17 minimum requirements for the building and energy certificates
• Highlights gaps and actions to reach compliance
• Forms the basis for roadmaps and prioritization

---

Portfolio analysis

• From /measures you can open a portfolio analysis (/tiltak/portefolje/[slug]).
• Used to prioritize measures across buildings based on profitability and CO₂ impact.

---

Frequently asked questions

• Why do I get “no data”?
  Measures requires at least one certificate or one main metering point.

• Are simulator results final?
  No, they are estimates for decision support. Always confirm with suppliers.
